HANHELD SCREWDRIVERS

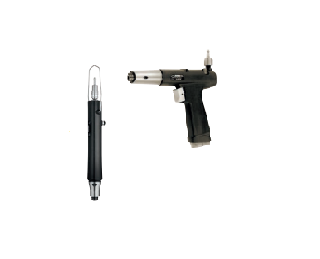

DEPRAG handheld screwdrivers are designed to fulfill the highest requirements for the industrial assembly. Due to the wide torque-range, designs that fit any application and by using the most modern drive-technology, the DEPRAG handheld screwdrivers assure a maximum process reliability for every configuration level. The MICROMAT/MINIMAT screwdriver is one of the most popular tools on the market, especially due to its ergonomic design, the slender construction and the low weight. It is well suited for the continued use in a mass production environment.

Depending on the application, the user can choose between a straight design for vertical screw insertions, pistol grip design for horizontal assembly and angle head design for confined spaces and high torque requirements.

Handheld Screwdrivers powered by electricity
Handheld Screwdrivers powered by electricity torque range from 8 Nmm (1.14 inch ounces) to 120 Nm (1,160 inch pounds)

  • Ergonomic
  • Documentation capable
  • Flexible
  • Versatile
  • Process reliable
  • The electric handheld DEPRAG screwdriver fulfills the highest requirements in the industrial assembly process.

ELECTRONIC HANHELD SCREWDRIVERS

MINIMAT-EC-Servo Screwdriver

The EC-Servo Screwdriver with brushless EC-motor offer – together with the corresponding controller AST30-31 – a maximum flexibility and process reliability – even on a manual workstation.

The integrated sensor controlled torque- and angle measurement allows the exact control and regulation of the screw tightening process, as well as the documentation of important process parameters and guarantees the highest precision.

Consequently, several different tightening parameter can be realized with one assembly cycle.


MINIMAT-EC Screwdriver

The flexible EC-Screwdriver with brushless EC-motor offer – together with the corresponding controller AST11 – maximal flexibility and process reliability.

The integrated current-controlled torque- and angle measurement allows the exact control and regulation of the screw tightening process as well as the documentation of important process parameters and guarantees the highest precision.

Consequently, several different tightening parameters can be realized with one assembly cycle.


MINIMAT-EC Cordless Screwdriver

Battery operated screwdriving with highest accuracy

The new cordless angle nutrunner is an excellent solution for process control of threaded fastener assemblies under restricted working conditions – without electrical cables or air hoses.

Proven DEPRAG precision screwdriving technology with high torque accuracy.


MINIMAT-ED Screwdriver

Digital A/C Electric Screwdriver with electromagnetic shut-off clutch.
The torque adjustment is done comfortably direct on the screwdriver: Just Plug and Play!

This innovative screwdriver is especially well suited for workstations with everchanging tightening parameters. Its use in the controller- and switchboard construction is just as feasible as in an industrial recycling facility, in the mass-production assembly as well as in repair operations.


A/C Electric Screwdriver

The economical A/C Electric Screwdriver with mechanical shut-off clutch.

The alternative solution, when the workstation does not have a supply of compressed air.


Handheld Electric Screwdrivers for Screwfeeders

Nearly every screwdriver of the MICROMAT/MINIMAT series can be combined with our screwfeeders.

Here, we can offer a wide assortment of screwdrivers that are perfectly adapted for our screwfeeders.


PNEUMATIC HANHELD SCREWDRIVERS

NANOMAT

The screwdriver for extremely small torque values of 8 Nmm – 300 Nmm at speeds of 450 to 2,000 rpm.

The ideal solutions for micro assemblies in the medical industry, the watchmaking industry, optical industry, for the production of small consumer electronics and components, and for the use with precision engineering or model making.


MICROMAT

The basic solution for nearly all screwdriving tasks of 2 Ncm (3 inch ounces) to 70 Ncm (6.2 inch pounds).

This skinny screwdriver – hardly larger than a ballpoint pen – is designed for the use in a rugged industrial area and this driver series assures extreme high up-times. This special clutch design can reach an extreme high torque accuracy, in many cases below ≤3 % of the standard deviation, which is kept constant over several million of cycles.


MINIMAT

The basic solution for nearly all screwdriving tasks of 0.2 Nm to 65 Nm.

This handheld screwdriver is designed for the use in rugged industrial applications and it assures extreme high up-times. This special clutch design enables our screwdrivers to reach extreme high torque accuracy, in many cases below ≤3 % of the standard deviation, which remains constant over several million of cycles.


MICROMAT-F/MINI MAT-F

Pneumatic srewdrivers with additional function control.

If an error occurs, the controller fc20 locks-out the connected screwdriver. The subsequent assembly process can only be started if the previous task was completed properly. The correct number of tightened screws per assembly can also be controlled.


SENSOMAT

Test screwdriver with controlled clutch function for screw-joints with higher seating torque than driving torque.

The special execution for thread-tapping, thread-cutting or self-drilling fasteners! The SENSOMAT screwdriver first tightens the screw at full motor power and engages the shut-off clutch only shortly before the screwhead bottoms out.
A damaging overtightened of the screw is impossible!


HANDHELD Screwdriver for automatic Screwfeeding

Nearly every screwdriver of the MICROMAT/MINIMAT series as well as the ERGOMAT and SENSOMAT series, can be combined with our screwfeeding machines.

Here, we can offer the wide product range of the screwdrivers that are perfectly adapted to our screwfeeders.


HANDHELD Screwdriver for Special Applications

Our program includes a variety of handheld screwdrivers for special applications, such as impulse screwdriver, impact screwdriver, VARIOMAT (drilling and screwdriving with one tool) for wood applications, RECYCLING screwdriver, slip-clutch screwdriver and flathead screwdriver.

For every application there is a suitable screwdriver!
