HANHELD SCREWDRIVERS
DEPRAG handheld screwdrivers are designed to fulfill the highest requirements for the industrial assembly.
ELECTRONIC HANDHELD SCREWDRIVERS
Torque range from 8 Nm (1.14 inch ounces) to 120 Nm (1,160 inch pounds)
• Ergonomic • Documentation capable • Flexible • Versatile • Process reliable

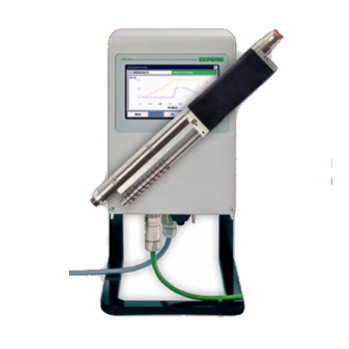

The EC-Servo Screwdriver with brushless EC-motor offer – together with the corresponding controller AST30-31 – a maximum flexibility and process reliability – even on a manual workstation.
The integrated sensor controlled torque- and angle measurement allows the exact control and regulation of the screw tightening process, as well as the documentation of important process parameters and guarantees the highest precision.
Consequently, several different tightening parameter can be realized with one assembly cycle.
Design execution : Straight
- Torque range: 0.1 – 2 Nm
- Torque range: 0.2 – 500 Nm
Design execution : Angle-head form
- Torque range: 7 – 120 Nm

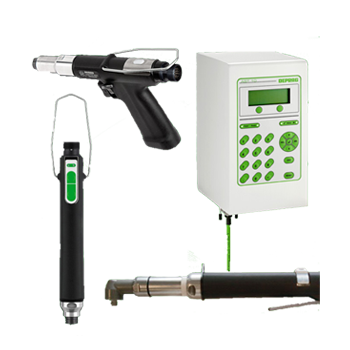

MINIMAT-EC Screwdriver
The flexible EC-Screwdriver with brushless EC-motor offer – together with the corresponding controller AST11 – maximal flexibility and process reliability.
The integrated current-controlled torque- and angle measurement allows the exact control and regulation of the screw tightening process as well as the documentation of important process parameters and guarantees the highest precision.
Consequently, several different tightening parameters can be realized with one assembly cycle.
Design execution : Straight
- Torque range: 0.01 – 25 Nm
Design execution : Pistolgrip
- Torque range: 0.06 – 18 Nm
Design execution: Angle-head form
- Torque range: 0.4 – 25 Nm

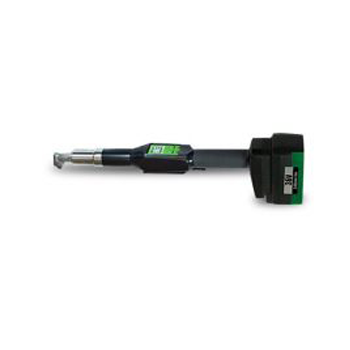

MINIMAT-EC Cordless Screwdriver
Battery operated screwdriving with highest accuracy
The new cordless angle nutrunner is an excellent solution for process control of threaded fastener assemblies under restricted working conditions – without electrical cables or air hoses.
Proven DEPRAG precision screwdriving technology with high torque accuracy.
Design execution : Angle-Head
- Torque Range: 1 Nm – 50 Nm
Design execution : Pistol form
- Torque Range: 0.8 – 13 Nm

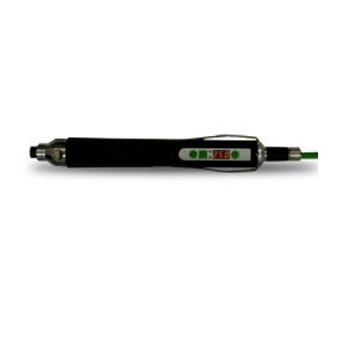

MINIMAT-ED Screwdriver
Digital A/C Electric Screwdriver with electromagnetic shut-off clutch.
The torque adjustment is done comfortably direct on the screwdriver: Just Plug and Play!
This innovative screwdriver is especially well suited for workstations with everchanging tightening parameters. Its use in the controller- and switchboard construction is just as feasible as in an industrial recycling facility, in the mass-production assembly as well as in repair operations.

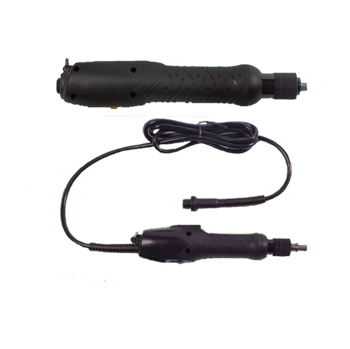

A/C Electric Screwdriver
The economical A/C Electric Screwdriver with mechanical shut-off clutch.
The alternative solution, when the workstation does not have a supply of compressed air.
Handheld Electric Screwdriver for Screwfeeders
Nearly every screwdriver of the MICROMAT/MINIMAT series can be combined with our screwfeeders.
Here, we can offer a wide assortment of screwdrivers that are perfectly adapted for our screwfeeders.
Screwdriver versions for a Screwfeeder:
- MICROMAT-EC Z-execution
- MINIMAT-EC Z-execution
- MINIMAT-EC-Servo Z-execution
If so requested, we can supply our screwdrivers in ESD-execution to connect to a screwfeeder.
PNEUMATIC HANDHELD SCREWDRIVERS
For nearly all industrial applications
• Uninfluenceably acurate • Economical • Robust • Ergonomic • Durable • Quiet

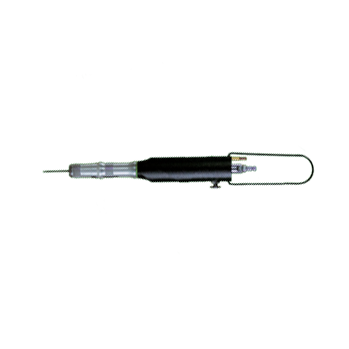

NANOMAT
The screwdriver for extremely small torque values of 8 Nmm – 300 Nmm at speeds of 450 to 2,000 rpm.
The ideal solutions for micro assemblies in the medical industry, the watchmaking industry, optical industry, for the production of small consumer electronics and components, and for the use with precision engineering or model making.
The Screwdriver for micro assemblies
- Design execution: Straight
- Torque range: from 8 Nmm – 300 Nmm
for speeds from 300 to 1,400 rpm

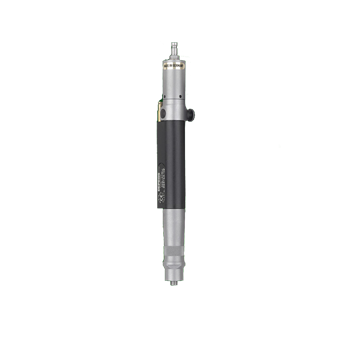

MICROMAT
The basic solution for nearly all screwdriving tasks of 2 Ncm (3 inch ounces) to 70 Ncm (6.2 inch pounds).
This skinny screwdriver – hardly larger than a ballpoint pen – is designed for the use in a rugged industrial area and this driver series assures extreme high up-times. This special clutch design can reach an extreme high torque accuracy, in many cases below ≤3 % of the standard deviation, which is kept constant over several million of cycles.
MICROMAT Screwdriver
- Design execution: Straight
- Torque range: from 2 Ncm – 70 Ncm
MICROMAT-ESD Screwdriver
- Design execution: Straight
- Torque range: from 2 Ncm – 70 Ncm

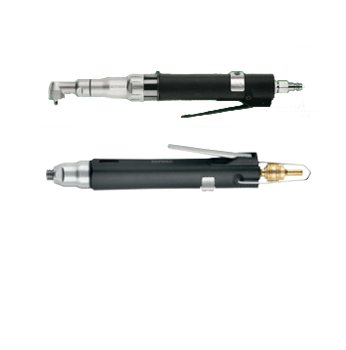

MINIMAT
The basic solution for nearly all screwdriving tasks of 0.2 Nm to 65 Nm.
This handheld screwdriver is designed for the use in rugged industrial applications and it assures extreme high up-times. This special clutch design enables our screwdrivers to reach extreme high torque accuracy, in many cases below ≤3 % of the standard deviation, which remains constant over several million of cycles.

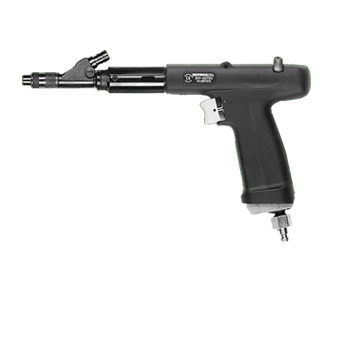

MINIMAT Screwdriver
- Design execution: Straight
- Torque range: 0.2 – 20 Nm
- Design execution: Pistolgrip
- Torque range: 0.3 – 20 Nm
- Design execution: Angle-Head
- Torque range: 0.3 – 65 Nm
MINIMAT-ESD Screwdriver

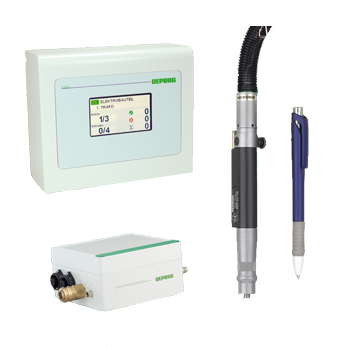

MICROMAT-F/MINIMAT-F
Pneumatic srewdrivers with additional function control.
If an error occurs, the controller fc20 locks-out the connected screwdriver. The subsequent assembly process can only be started if the previous task was completed properly. The correct number of tightened screws per assembly can also be controlled.
MICROMAT-F Screwdriver
- Design execution: Straight
- Torque range: 2 – 70 Ncm
MINIMAT-F Screwdriver
- Design execution: Straight
- Torque range: 0.2 – 20 Nm
- Design execution: Pistolgrip
- Torque range: 0.3 – 24 Nm
- Design execution: Angle-head design
- Torque range: 0.3 – 33 Nm

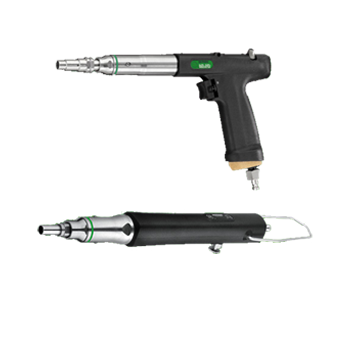

SENSOMAT
Test screwdriver with controlled clutch function for screw-joints with higher seating torque than driving torque.
The special execution for thread-tapping, thread-cutting or self-drilling fasteners! The SENSOMAT screwdriver first tightens the screw at full motor power and engages the shut-off clutch only shortly before the screwhead bottoms out.
SENSOMAT Screwdriver
- Design execution: Straight
- Torque range: 0.3 – 5.0 Nm at a maximum driving torque of 7 Nm
- Design execution: Pistolgrip
- Torque range: 0.4 – 5 Nm at a maximum driving torque of 7 Nm

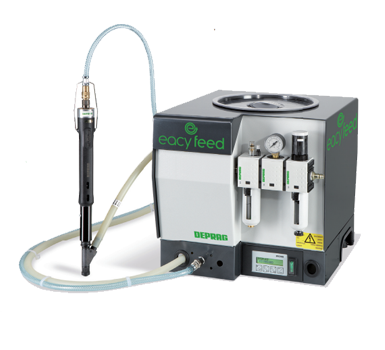

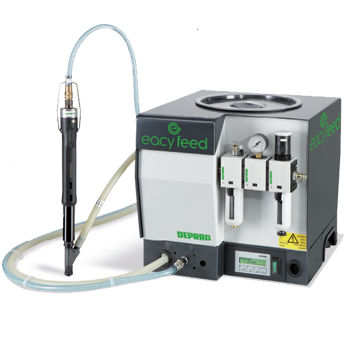

The pneumatic, handheld Screwdriver for a Screwfeeder
Handheld Screwdrivers for automatic Screwfeeding
Nearly every screwdriver of the MICROMAT/MINIMAT series as well as the ERGOMAT and SENSOMAT series, can be combined with our screwfeeding machines.
Here, we can offer the wide product range of the screwdrivers that are perfectly adapted to our screwfeeders.
Screwdriver versions for a Screwfeeder:
- MICROMAT Z-execution, straight
- MINIMAT Z-execution, straight
- ERGOMAT Z-execution, straight
- MICROMAT-F Z-execution, straight
- MINIMAT-F Z-execution, straight
- SENSOMAT Z-execution, straight
Additional screwdriver versions that are suitable for the use with automatic screwfeeders:
- MINIMAT pistolgrip
- MINIMAT-T straight or pistolgrip
The handheld Screwdriver for a Special Applications

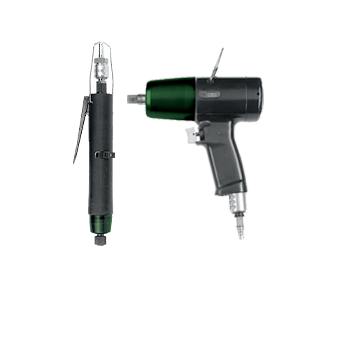

Impulse Screwdriver with Automatic Shut-Off
The ergonomic screwdriver with hydraulic impact can be used for example for a fast rundown to a preset torque, without any noticeable torque-reaction.
Impulse Screwdriver with Automatic Shut-Off:
- Design execution: Straight
Torque range: 5 – 35 Nm - Design execution: Pistolgrip
Torque range: 4 Nm – 120 Nm
IMPACT Screwdriver
The durable impact screwdrivers for the fast assembly of torque values from 300 – 2650 Nm.
MINIMAT-T Screwdriver:
- Design execution: Straight, Pistolgrip
Torque range: 5 Nm – 12 Nm

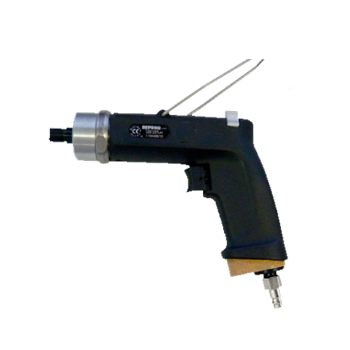

VARIOMAT Screwdriver
The all-rounder for the wood industry.
VARIOMAT with shut-off clutch
- Design execution: Pistolgrip
Torque range (soft screw-joint): up to 4.5 Nm
Torque range (hard screw-joint): up to 5 Nm
VARIOMAT with slip clutch
- Design execution: Pistolgrip
Torque range: 0.5 Nm – 4.5 Nm
VARIOMAT with adapter
- Design execution: Pistolgrip
Torque range: up to 5.7 Nm
VARIOMAT with keyless drill chuck or standard drill chuck
- Design execution: Pistolgrip
Torque range: up to 5.7 Nm
RECYCLING Screwdriver
The flexible tool for the repair- and recycling operation.
The RECYCLING screwdriver guarantees the easy loosening of screw-connections.
RECYCLING Screwdriver for Horizontal Disassembly:
- Design execution: Pistolgrip
Torque range: up to max. 18 Nm

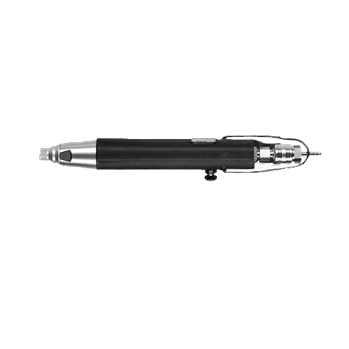

RECYCLING Screwdriver for the Vertical Disassembly:
- Design execution: Straight
Torque range: up to max. 10 Nm

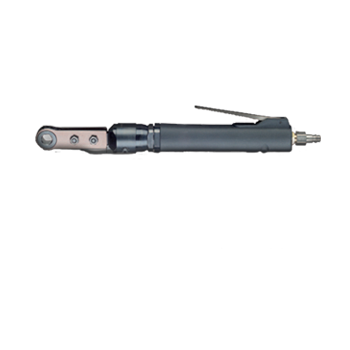

Flat Head Wrenches
The solution for limited space conditions and screw sizes from M3 to M18.
Flat Head Wrenches
- Design: closed head
Torque range: up to max. 48 Nm
for screw-sizes of M3 (AF5) – M18 (AF27)
