STATIONARY SCREWDRIVERS

DEPRAG offers the smallest stationary screwdriver on the market.

DEPRAG stationary screwdrivers are designed for the use in the industrial assembly process.


STATIONARY SCREWDRIVERS

The screwdriver spindle for the highest process reliability and flexibility

Simple integration  Documentation capable  • Flexible  Versatile  Smallest mounting dimensions

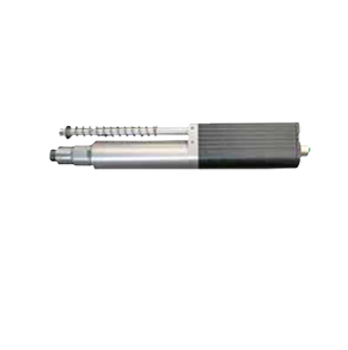

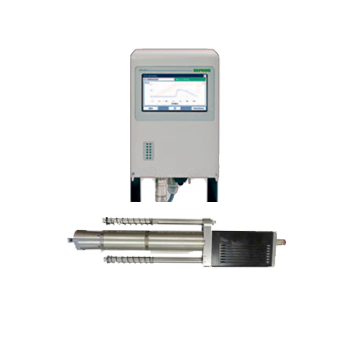

MINIMAT-EC-Servo Screwdriver

The stationary EC-Servo screwdriver with brushless EC-motor and the corresponding controller AST40, offers the maximal flexibility and process reliability.

The integrated sensor controlled torque- and angle measurement allows the exact control and regulation of the screw tightening process, as well as the documentation of important process parameters and guarantees the highest precision.

Consequently, severaldifferent tightening parameter can be realized with one assembly cycle.

MINIMAT-EC-Servo Screwdriver

  • Design execution : Straight
  • Torque range: 0.2 – 500 Nm

DOWNLOAD CATALOG D3136






NANOMAT-EC/MICROMAT-EC

MINIMAT-EC Screwdriver

The flexible EC-screwdriver with brushless EC-motor and the corresponding controller AST11, offers the maximal flexibility and process reliability.

The integrated torque and angle measurement – based on motor current – allows the precise control of the screwdriving parameters, as well as the documentation of important processing parameters and guarantees the highest precision.

Consequently, several different tightening parameter

NANOMAT-EC Screwdriver

  • Design execution : Straight
  • Torque range: 0.02 – 0.12 Nm

MICROMAT-EC Screwdriver

  • Design execution : Straight
  • Torque range: 0.03 – 0.8 Nm

MINIMAT-EC Screwdriver

  • Design execution: Straight
  • Torque range: 0.15 – 25 Nm

DOWNLOAD CATALOG D3165

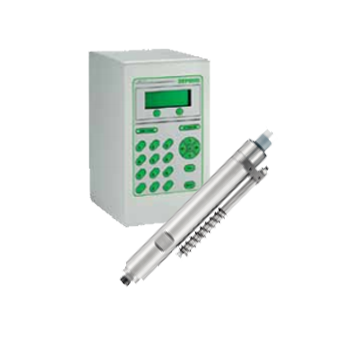

MINIMAT-ED Stationary Screwdriver

The digital electric screwdriver for stationary use is available in four versions.

The speeds can be individually adjusted up to the maximum speed for each screwdriver type.

Use the interface 330E to connect to and communicate with a system controller when operating the stationary MINIMAT-ED screwdriver. All hardware components required should be integrated into a control cabinet.

MINIMAT-ED Stationary Screwdriver

  • Design execution : Straight
  • Torque Range: 0.24 Nm – 4.8 Nm

DOWNLOAD CATALOG D3195


PNEUMATIC STATIONARY SCREWDRIVERS

For nearly all industrial applications

Simple integration   Smallest mounting dimensions   Extremely robust

Highly accurate shut-off clutch  •  ATEX-compliant tool variations are available

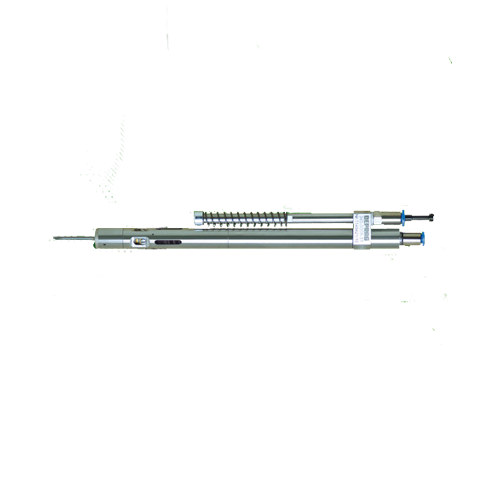

NANOMAT Screwdriver

The screwdriver for extremely small torque values from 8 Nmm – 300 Nmm at speeds of 450 to 2,000 rpm.

For ideal solutions for micro assemblies in the medical industry, the watchmaking industry, optical industry, for the production of small consumer electronics and components, and for the use with precision engineering or model making.

NANOMAT Stationary Screwdriver

  • Design execution: Straight
  • Torque range: from 8 Nmm – 300 Nmm
    at speeds of 340 to 1.600 rpm

DOWNLOAD CATALOG D3125

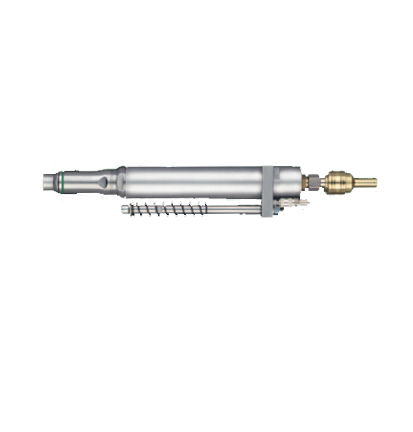

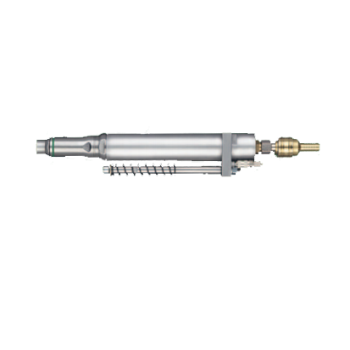

MICROMAT Screwdriver

The basic solution for nearly all screwdriving applications requiring a very small torque value of 2 Ncm – 70 Ncm.

This skinny screwdriver – hardly larger than a ballpoint pen – is designed for the use in a rugged industrial area and this driver series assures extreme high uptimes

MICROMAT Stationary Screwdriver

  • Design execution: Straight
  • Torque range: 2 Ncm – 70 Ncm

DOWNLOAD CATALOG D3130

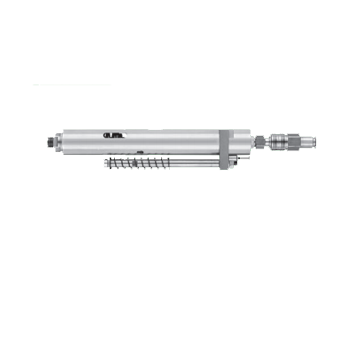

MINIMAT Screwdriver

The basic solution for nearly all screwdriving applications requiring a torque range of 0.2 – 180 Nm.

This popular screwdriver spindle is designed for the use in rugged industrial applications and it assures extreme high uptimes.

MINIMAT Screwdriver Spindles

  • Design execution: Straight
  • Torque range: 0.2 Nm – 180 Nm

DOWNLOAD CATALOG D3130

  • Design execution: Angle-Head
  • Torque range: 0.3 Nm – 67 Nm

DOWNLOAD CATALOG D3135


SENSOMAT Screwdriver

The screwdriver with controlled clutch function for screw-joints with higher seating torque than driving torque.

The specialized solution for thread-tapping, thread-cutting or self-drilling fasteners! The SENSOMAT screwdriver first tightens the screw at full motor power and engages the shut-off clutch only shortly before the screwhead bottoms out.

SENSOMAT Screwdriver Spindles

  • Design execution: Straight
  • Torque range: 0,3 Nm – 5 Nm at a maximum driving torque of 7 Nm

DOWNLOAD CATALOG D3140
